CAMTEC

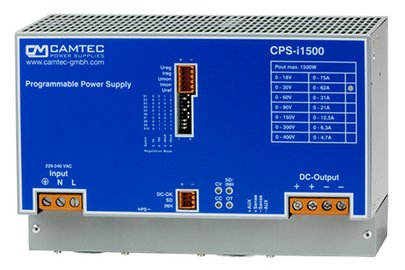

CPS-i-Serie

OEM power supply with programmable voltage and current, 480 W – 100 kW

Performance Features
Models
Downloads

Performance Features

Voltage up to 400 VDC
U and I programmable 0-5 VDC, 0-10 VDC, 0-20 mA, or 4-20 mA
Efficiency typ. 94%
Rail or wall mounting
Mains input 230 VAC
Monitoring for Uout and Iout
Optional powersink
Optional inhibit safety module according to SIL03
Optional USB 2.0 interface incl. software
Optional wall bracket

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
CPS-i1500.018(R2) - 0- 18 V / 0 -75 A / 1500 WCT1195A	CPS-i1500.018(R2) - 0- 18 V / 0 -75 A / 1500 W	Comparison model description	18	75	1.500	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i2000.018(R2) - 0 - 18 V / 0 - 165 A / 2000 WCT1197A	CPS-i2000.018(R2) - 0 - 18 V / 0 - 165 A / 2000 W	Comparison model description	18	165	2.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i3000.018(R2) - 0 - 18 V / 0 - 185 A / 3000 WCT1219A	CPS-i3000.018(R2) - 0 - 18 V / 0 - 185 A / 3000 W	Comparison model description	18	185	3.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i1500.030(R2) - 0- 30 V / 0 - 62 A / 1500 WCT1215A	CPS-i1500.030(R2) - 0- 30 V / 0 - 62 A / 1500 W	Comparison model description	30	62	1.500	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i2000.030(R2) - 0 - 30 V / 0 - 100 A / 2000 WCT1188A	CPS-i2000.030(R2) - 0 - 30 V / 0 - 100 A / 2000 W	Comparison model description	30	100	2.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i3000.030(R2) - 0 - 30 V / 0 - 125 A / 3000 WCT1220A	CPS-i3000.030(R2) - 0 - 30 V / 0 - 125 A / 3000 W	Comparison model description	30	125	3.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i1500.060(R2) - 0- 60 V / 0 - 31 A / 1500 WCT1216A	CPS-i1500.060(R2) - 0- 60 V / 0 - 31 A / 1500 W	Comparison model description	60	31	1.500	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i2000.060(R2) - 0 - 60 V / 0 - 50 A / 2000 WCT1209A	CPS-i2000.060(R2) - 0 - 60 V / 0 - 50 A / 2000 W	Comparison model description	60	50	2.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i3000.060(R2) - 0 - 60 V / 0 - 62,5 A / 3000 WCT1221A	CPS-i3000.060(R2) - 0 - 60 V / 0 - 62,5 A / 3000 W	Comparison model description	60	62,5	3.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CPS-i1500.090(R2) - 0- 90 V / 0 - 21 A / 1500 WCT1217A	CPS-i1500.090(R2) - 0- 90 V / 0 - 21 A / 1500 W	Comparison model description	90	21	1.500	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft

Downloads

Datasheets	Type/Format
Datenblatt CPS-i1500	PDF	CPS-i1500_R2_D_E.pdf
Datenblatt CPS-i2000	PDF	CPS-i2000_R2_D_E.pdf
Datenblatt CPS-i3000	PDF	CPS-i3000_R2_D_E.pdf
