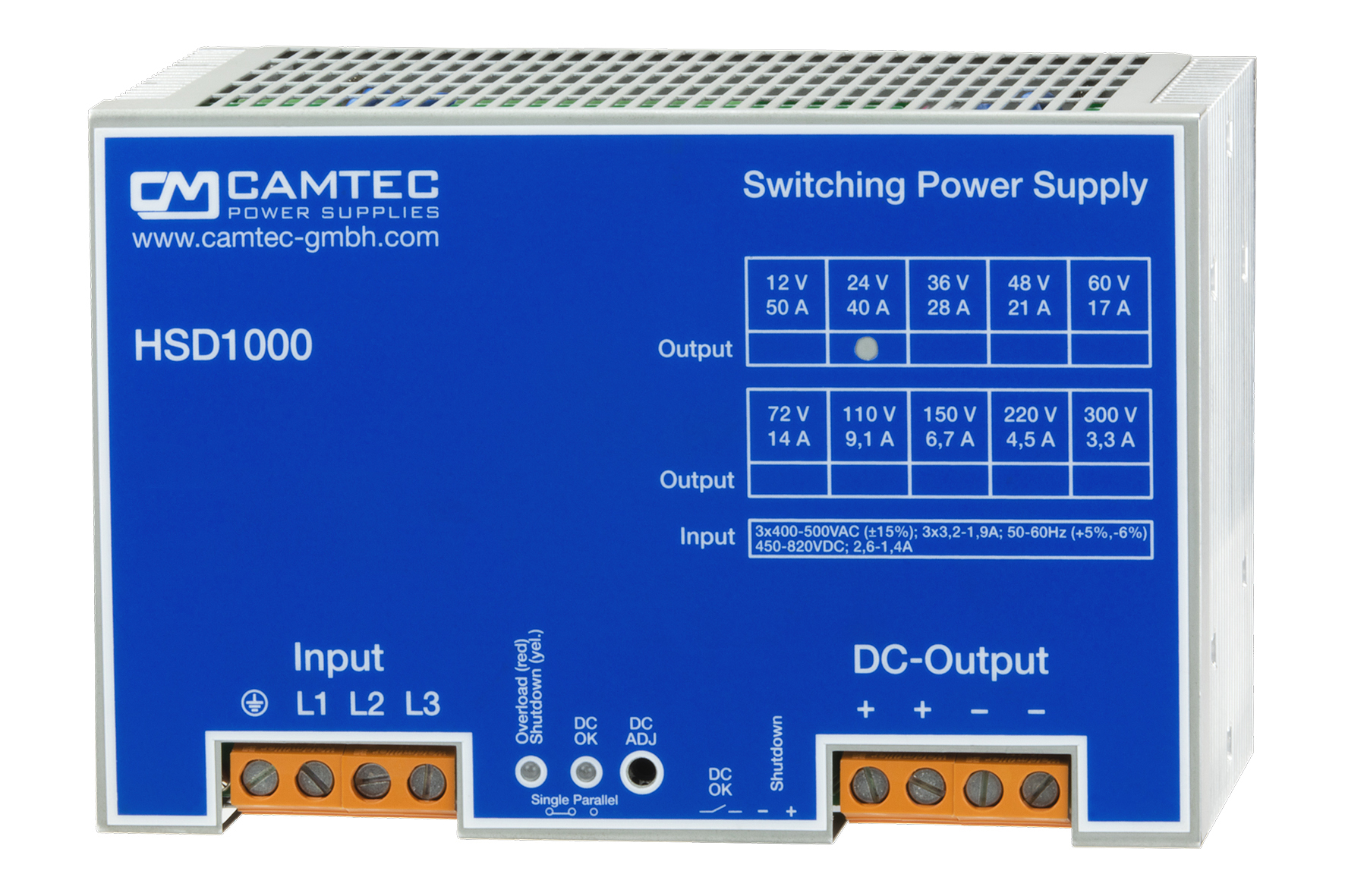

HSD-series

DC/DC 450-820Vdc power supply for DC minigrid

Performance Features
Models
Downloads

Performance Features

Up to 92% efficiency
Natural convection
N+1 parallel operation
Bridging time >15ms
Electronic inrush current limiter <5A
Precise current-voltage curve
Precise dynamic response to load changes
Designed for long service life under full load
Powerful input filters
High reliability, shock and vibration resistant
Overvoltage and continuous short-circuit protection
PFC: EN61000-3-2
EMI/EMS EN61000-6-2,3, EN55032 Class B
EN61010-1, EN61010-2-201, EN62368-1

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
HSD10001.012(R2) / 17 V / 50 A / 600 W CT1157A	HSD10001.012(R2) / 17 V / 50 A / 600 W	Comparison model description	17	50	600	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD04801.024(R2) / 28,5 V / 20 A / 480 W CT1172A	HSD04801.024(R2) / 28,5 V / 20 A / 480 W	Comparison model description	28,5	20	480	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD10001.024(R2) / 28,5 V / 40 A / 1000 W CT1029A	HSD10001.024(R2) / 28,5 V / 40 A / 1000 W	Comparison model description	28,5	40	1.000	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD04801.036(R2) / 38 V / 13,3 A / 480 W CT1325	HSD04801.036(R2) / 38 V / 13,3 A / 480 W	Comparison model description	38	13,3	480	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD10001.036(R2) / 43 V / 28 A / 1000 W CT1227A	HSD10001.036(R2) / 43 V / 28 A / 1000 W	Comparison model description	43	28	1.000	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD04801.048(R2) / 52,8 V / 10 A / 480 W CT1326	HSD04801.048(R2) / 52,8 V / 10 A / 480 W	Comparison model description	52,8	10	480	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD10001.048(R2) / 53 V / 21 A / 1000 W CT1229A	HSD10001.048(R2) / 53 V / 21 A / 1000 W	Comparison model description	53	21	1.000	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD04801.060(R2) / 72 V / 8 A / 480 W CT1123A	HSD04801.060(R2) / 72 V / 8 A / 480 W	Comparison model description	72	8	480	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD10001.060(R2) / 72 V / 17 A / 1000 W CT1187A	HSD10001.060(R2) / 72 V / 17 A / 1000 W	Comparison model description	72	17	1.000	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSD10001.072(R2) / 86 V / 14 A / 1000 W CT1317A	HSD10001.072(R2) / 86 V / 14 A / 1000 W	Comparison model description	86	14	1.000	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
