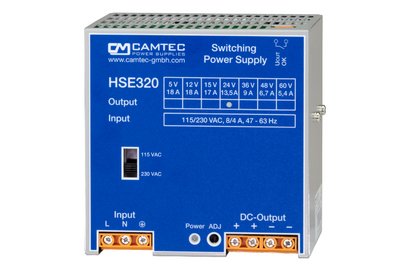

CAMTEC

HSE-series

AC/DC industrial DIN rail power supply 1-phase 10W-1500W

Performance Features
Models
Downloads

Performance Features

Metal housing
Up to 89% efficiency
Full output power from -20 °C to +60 °C
Free air convection
Galvanically isolated
Continuous short-circuit protection
Overload and undervoltage protection
Soft start and auto recovery
Hold-up time > 30 ms
Safe under no-load conditions
EMI/EMS: EN61000-6-2, EN61000-6-3, EN55022 Class B
PFC standard: EN61000-3-2 Class A
cUL60950/16950 IEC(EN)60950-1
Series and parallel operation
35 mm DIN rail mounting
Screw terminals AWG26 to AWG12
24-hour burn-in test
High reliability, shock and vibration resistant

Models

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
HSE03201.005LIRC(R2) / 9 V / 18 A / 160 W CT1314A	HSE03201.005LIRC(R2) / 9 V / 18 A / 160 W	Comparison model description	9	18	320	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE01201.012(R2) / 13,2 V / 8 A / 120 W CT1033A	HSE01201.012(R2) / 13,2 V / 8 A / 120 W	Comparison model description	13,2	8	120	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE03201.012LIRC(R2) / 14,4 V / 18 A / 320 W CT1155A	HSE03201.012LIRC(R2) / 14,4 V / 18 A / 320 W	Comparison model description	14,4	18	320	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE04801.012(R2) / 14,4 V / 30 A / 480 W CT1054A	HSE04801.012(R2) / 14,4 V / 30 A / 480 W	Comparison model description	14,4	30	480	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE07201.012(R2) / 14,4 V / 40 A / 720 W CT1058A	HSE07201.012(R2) / 14,4 V / 40 A / 720 W	Comparison model description	14,4	40	720	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE01201.015(R2) / 16,5 V / 8 A / 120 W CT1174A	HSE01201.015(R2) / 16,5 V / 8 A / 120 W	Comparison model description	16,5	8	120	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE03201.015LIRC(R2) / 15 V / 17 A / 320 W CT1266A	HSE03201.015LIRC(R2) / 15 V / 17 A / 320 W	Comparison model description	18	17	320	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE04801.015(R2) / 18 V / 26 A / 480 W CT1055A	HSE04801.015(R2) / 18 V / 26 A / 480 W	Comparison model description	18	26	480	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE01201.024(R2) / 28,5 V / 5 A / 120 W CT1012A	HSE01201.024(R2) / 28,5 V / 5 A / 120 W	Comparison model description	28,5	5	120	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft
HSE03201.024LIRC(R2) / 28,8 V / 13,5 A / 320 W CT1171A	HSE03201.024LIRC(R2) / 28,8 V / 13,5 A / 320 W	Comparison model description	28,8	13,5	320	AC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)		CW	Luft

Downloads

Datasheets	Type/Format
Datenblatt HSE01201	PDF	HSE01201_R2_D_E.pdf
Datenblatt HSE03201	PDF	HSE03201_LIRC_R2_D_E.pdf
Datenblatt HSE04801	PDF	HSE04801_R2_D_E.pdf
Datenblatt HSE07201	PDF	HSE07201_R2_D_E.pdf
Datenblatt HSE10001	PDF	HSE10001_R2_D_E.pdf
