CAMTEC

HSEuireg-Serie

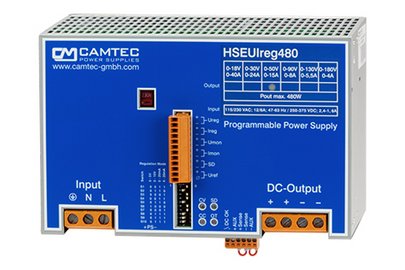

OEM power supply with programmable voltage and current

Performance Features
Models
Downloads

Performance Features

U and I programmable 0-5 VDC
0-10 VDC or 0-20 mA, 4-20 mA
Efficiency typ. 90%
Rail or wall mounting
Mains input 115/230 VAC
Monitoring for U out and I out

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
HSEUIreg04801.018(R2) / 0 - 18 V / 0 - 40 A / 480 WCT1078A	HSEUIreg04801.018(R2) / 0 - 18 V / 0 - 40 A / 480 W	Comparison model description	18	40	480	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg07201.018(R2) / 0 - 18 V / 0 - 40 A / 720 WCT1060A	HSEUIreg07201.018(R2) / 0 - 18 V / 0 - 40 A / 720 W	Comparison model description	18	40	720	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg10001.018(R2) / 0 - 18 V / 0 - 50 A / 900 WCT1059A	HSEUIreg10001.018(R2) / 0 - 18 V / 0 - 50 A / 900 W	Comparison model description	18	50	900	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg04801.030(R2) / 0 - 30 V / 0 - 24 A / 480 WCT1062A	HSEUIreg04801.030(R2) / 0 - 30 V / 0 - 24 A / 480 W	Comparison model description	30	24	480	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg07201.030(R2) / 0 - 30 V / 0 - 30 A / 720 WCT1092A	HSEUIreg07201.030(R2) / 0 - 30 V / 0 - 30 A / 720 W	Comparison model description	30	30	720	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg10001.030(R2) / 0 - 30 V / 0 - 42 A / 1000 WCT1072A	HSEUIreg10001.030(R2) / 0 - 30 V / 0 - 42 A / 1000 W	Comparison model description	30	42	1.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg04801.050(R2) / 0 - 50 V / 0 - 15 A / 480 WCT1081A	HSEUIreg04801.050(R2) / 0 - 50 V / 0 - 15 A / 480 W	Comparison model description	50	15	480	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg07201.050(R2) / 0 - 50 V / 0 - 18 A / 720 WCT1093A	HSEUIreg07201.050(R2) / 0 - 50 V / 0 - 18 A / 720 W	Comparison model description	50	18	720	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg10001.050(R2) / 0 - 50 V / 0 - 25 A / 1000 WCT1159A	HSEUIreg10001.050(R2) / 0 - 50 V / 0 - 25 A / 1000 W	Comparison model description	50	25	1.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
HSEUIreg07201.060(R2) / 0 - 60 V / 0 - 15 A / 720 WCT1208A	HSEUIreg07201.060(R2) / 0 - 60 V / 0 - 15 A / 720 W	Comparison model description	60	15	720	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft

Downloads

Datasheets	Type/Format
Datenblatt HSEUIREG04801	PDF	HSEUIreg04801_R2_D_E.pdf
Datenblatt HSEUIREG07201	PDF	HSEUIreg07201_R2_D_E.pdf
Datenblatt HSEUIREG10001	PDF	HSEUIreg10001_R2_D_E.pdf
