Delta Elektronika
EST-150-Serie

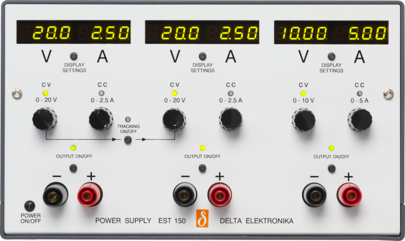

150 W DC power supply with triple output
The EST150 series combines three power supplies in one housing.
Performance Features
- Very low output ripple and spikes
- EMC surpasses CE requirements: low emission & high immunity
- Excellent dynamic response to load changes
- Protected against all overload and short circuit
- conditions
- Designed for long life at full power
- 3 independent, floating outputs
- Dual voltage tracking or series tracking mode
- 3 output On/Off buttons
- Convection cooling
- Voltage and current control with 10 turn potentiometers
- Input voltage (single phase): 90-265 VAC (48-62 Hz)
- Active Power Factor Correction (PFC): 0.99 / 0.83 (at 100% load)
- Efficiency: up to 81% (at full load)
- Output ripple and spikes: from 0.5 mVRMS / 8 mVPP
- Regulation: from 5 mV (0-100% load step)
- Recovery time: from 100 µs (50-100% load step)
- Tracking accuracy: 0.5%
- Output voltage and current stability: 10.10-5 / 10.10-5
- MTBF: 500 000 hrs
- Operating ambient temperature: -20 to +50 ºC
- Width: half 19 inch
- Height: 146 mm, incl. feet
- Depth: 180 mm
- Weight: 3.5 kg
Downloads
| Datasheets | Type/Format | ||
|---|---|---|---|
| Bedienungsanleitung EST150 | EST150_B_E.pdf | ||
| Datenblatt EST150 | EST150_D_E.pdf | ||
| Datenblatt Zubehör Delta RS232 | PSC232-488_D_E_2024_06_28.pdf |
