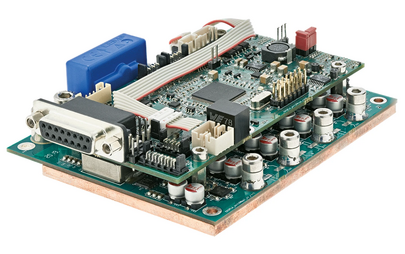

uniLDD-series

Laser diode driver

Driver to operate nearly all laser diodes at middle and high output power in CW or pulsed operation

Performance Features

Ideally suitable for diode operation from ca. 100 W to 3 kW for industrial and medical application
Models for CW operation to 100 A, QCW to 360 A and optional TEC operation
Air and conductively cooled models
Ex works individual regulation configuration for optimal performance adjusted to laser diode and connection setup
Highly efficient switching converter
Multi-phase power stage for very low current ripple
Minimal current drift
Parallel operation of drivers for output current multiplication
„Voltage booster“ for output voltage extension to 200 V and more
New GaN technology for up to 400 VDC operation
External optional buffer capacitor bank for long pulse QCW operation available
Analog and digital (CAN, RS232) control interface

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
uniLDD-A-CW EP9001	uniLDD-A-CW	Comparison model description	80	100	3.000	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / Analog	CW / High Speed	Luft
uniLDD-A-QCW EP9004	uniLDD-A-QCW	Comparison model description	80	360	2.000	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / Analog	High Speed / QCW	Luft
uniLDD-C-CW EP9002	uniLDD-C-CW	Comparison model description	80	100	3.000	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / Analog	CW / High Speed	Baseplate
uniLDD-C-QCW EP9005	uniLDD-C-QCW	Comparison model description	80	360	2.000	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / Analog	High Speed / QCW	Baseplate

Datasheets	Type/Format
Productcatalog	PDF	Productcatalog.pdf
Datenblatt uniLDD-Serie	PDF	uniLDD_D_E.pdf
Bedienungsanleitung uniLDD-A-Serie	PDF	uniLDD_A_B_E.pdf
Bedienungsanleitung uniLDD-C-Serie	PDF	uniLDD_C_B_E.pdf
