Head electronic

TEC-series

Power TEC Driver

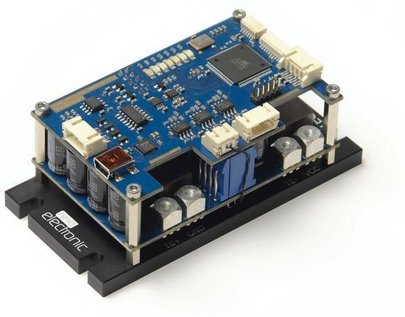

The TEC series is a very compact and powerful current source for Peltier elements. The device operates as a bidirectional regulated current source for the gentle operation of Peltier elements.

Performance Features
Models
Downloads

Performance Features

output power up to 425 W resp. 565 W
efficiency up to 97 %
ultra fast step response
H-bridge for combined heat/cool operation
USB- and RS485-interface
operating with Ptl000 sensor or NTC10k sensor (option)

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
TEC18-24 HD0026	TEC18-24	Comparison model description	24	18	432	DC	DC	CV	Regler	Q1 (U+,I+) / Q3 (U-,I-)	USB / RS485 / Analog		Baseplate
TEC06-24-P HD0028	TEC06-24-P	Comparison model description	24	6	144	DC	DC	CV	Regler	Q1 (U+,I+) / Q3 (U-,I-)	USB / RS485 / Analog		Baseplate
TEC06-24-N HD0029	TEC06-24-N	Comparison model description	24	6	144	DC	DC	CV	Regler	Q1 (U+,I+) / Q3 (U-,I-)	USB / RS485 / Analog		Baseplate
TEC18-32 HD0027	TEC18-32	Comparison model description	30	18	540	DC	DC	CV	Regler	Q1 (U+,I+) / Q3 (U-,I-)	USB / RS485 / Analog		Baseplate

Downloads

Datasheets	Type/Format
Datenblatt TEC 06-24	PDF	TEC06-24_D_E.pdf
Datenblatt TEC 18-24	PDF	TEC18-24_D_E.pdf
Datenblatt TEC 18-32	PDF	TEC18-32_D_E.pdf
