QCW600-Serie

CW & ultra-fast modulated laser diode driver DC/DC

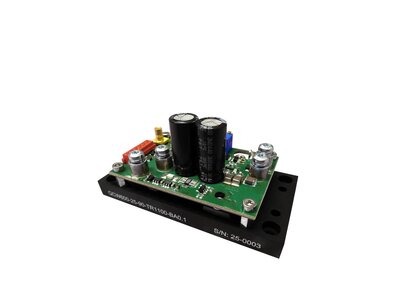

QCW600 is a linear regulated diode driver series to provide short pulsed to DC current into laser diodes like VCSELs or single emitter diode modules and stacks.

Performance Features
Models
Downloads

Performance Features

Output current: max. 5, 10, 20, 25 A (as per „-aa“ in model name)
Compliance voltage: <150 V, <90 V, <50 V (as per „-bb“ in model name)
Rise/fall time: min. from 50 ns (for 50 V model), min. from 250 ns (for 90, 150 V model), (configuration dependent by model suffix -TRxx, where „xx“ indicates the typ. rise time in ns)
Current programming: 0 .. 5 V = 0 .. I into 10 kW (SMB or pin 6) nom
max. modulation bandwidth is determined by internal
filters indicated by the suffix -BAyy, where „yy“
represents the -3dB bandwidth limit in MHz, if
marked with a „k“ in kHz
(Custom prog./mon. scalings may differ)
Protective Features: Soft start, transient protection, over temp., UVL
Control interface: Connector Micromatch 12pin, SMB for analog programming input
Power Dissipation: ca. 1.5 W + (U - U )*I in out out
Max. allowed losses:
For 50 V Model Pdiss,max = 40 W
For 90 V Model Pdiss,max = 100 W
@max. 50 °C baseplate temperature
measured in direct vicinity to output FET
Supply (aux): +12 V, max. 150 mA
Supply (main): Allowed range e.g. 0 .. 55 V, 0 .. 95 V or 0 .. 155 V DC
(or as per „-bb“ in model name)
Input (main) capacity: ca. 550 µF (50 V), 200 µF (90V), 100 µF (150 V)
Environment: -20 °C .. +50 °C (non condensing)
Cooling: Conductively via baseplate
Baseplate temperature: max. +50 °C
Main connectors in/out: Screw terminals M3, max. 5 mm depth
Size (LxWxH): 80 x 40 x 37 mm, PCB 60 x 40 mm, Baseplate mounting via M3 through hole

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
QCW600-10-50-TR050-BA1.5HL0431	QCW600-10-50-TR050-BA1.5	Comparison model description	50	10	500	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed / QCW	Baseplate
QCW600-20-90-TR250-BA0.1HL0311	QCW600-20-90-TR250-BA0.1	Comparison model description	90	20	1.800	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed / QCW	Baseplate
QCW600-20-90-TR1100-BA0.1HL0315	QCW600-20-90-TR1100-BA0.1	Comparison model description	90	20	1.800	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed / QCW	Baseplate
QCW600-05-150-TR250-BA20kHL0201	QCW600-05-150-TR250-BA20k	Comparison model description	150	5	750	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed / QCW	Baseplate
QCW600-05-150-TR1100-BA20kHL0205	QCW600-05-150-TR1100-BA20k	Comparison model description	150	5	750	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed / QCW	Baseplate
QCW600-05-150-TR2000-BA20kHL0208	QCW600-05-150-TR2000-BA20k	Comparison model description	150	5	750	DC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed / QCW	Baseplate
