Höcherl&Hackl

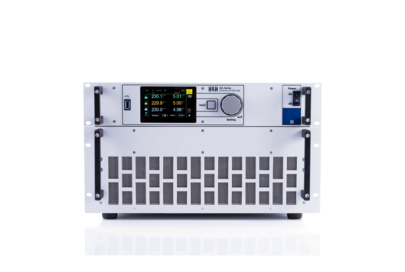

ACL series

ACL series 500-21.000 W

ACL series loads are suitable for DC and AC voltages up to 1,000 Hz. There are single-phase models as well as three-phase loads which combine 3 channels or phases, respectively, in one housing. Ethernet, USB, RS-232, CAN, I/O interface and a system bus for Master-Slave operation are built in as standard, a GPIB interface is available as an option. Programming is done in SCPI.

Performance Features
Models
Downloads

Performance Features

Frequency range up to 1,000 Hz
Single-phase and three-phase devices
Input voltage 280 V and 500 V
Single-phase power from 500 W to 21,000 W
Three-phase power from 3 x 1,400 W to 3 x 8,400 W
Parallel, in star or in delta connectable
User interface with 4.3" touchscreen
Operation by mouse
Operating modes constant current, constant resistance, constant voltage, constant power
Arbitrary current waveforms
Uninterrupted change of waveforms
Synchronization to load input, line or extern
Variable phase cut from -180° to +180°
Variable crest factor up to 4
Automatic amplitude correction
Variable phase shift in combination with crest factor
Harmonics up to the 25th order, even and odd
Variable current protection
List operation, also with three-phase current
LAN, USB, RS-232 standard, GPIB optional
Analog I/O port with real-time signals optional
Manual on board

Models

To product comparison

Model

Watchlist

Comparison

Voltage

Current

Power

Input

Output

Control mode

Function

Quadrants

Standard interface

Operating modes

Cooling

ACLS528 HH2855

400

500

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS1028 HH2856

400

1.000

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS1428 HH2857

400

1.400

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS2828 HH2858

400

2.800

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS4228 HH2859

400

4.200

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS5628 HH2860

400

5.600

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS7028 HH2861

400

7.000

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS8428 HH2862

400

8.400

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS9828 HH2863

400

9.800

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

ACLS11228 HH2864

400

11.200

CC/CV/CP/CR

Quelle u/o Senke

Q2 (U-,I+) / Q4 (U+,I-)

CAN / RS232 / USB / LAN/Ethernet / Andere

Luft

Options

Article number	Description	Watchlist	Comparison
12702	ACL02	ACL02	ACL02
11298	K-RS-SNM9-9	K-RS-SNM9-9	K-RS-SNM9-9
12682	ACL06	ACL06	ACL06
39310	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen	ACL14 Schwerlastgeräterollen
11329	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A	PH3/7.62-BU41 __ Eingangsstecker 1p 40 A
11331	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V	SENSADAPT/PH2/POK/60V __ Senseadapter 4 mm 60 V
11332	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V	SENSADAPT/PH2/POK/1200V __ Senseadapter 4 mm 1200 V
11320	K-MS-ACL Kabel	K-MS-ACL Kabel	K-MS-ACL Kabel
39308	Patch-Kabel 2 m	Patch-Kabel 2 m	Patch-Kabel 2 m
39309	SubD25-Doppler	SubD25-Doppler	SubD25-Doppler

Downloads

Datasheets	Type/Format
Datenblatt ACL-Serie	PDF	ACL_D_D.pdf
