Höcherl&Hackl

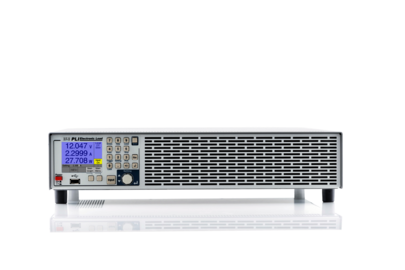

PLI-Serie

Air-cooled direct current load 600 – 28,800 W

All-rounders from H&H: the PLI series. With a huge model range, many standard functions, locally operated via the intuitive user interface or remotely via one of the many standard interfaces. Programming is done in SCPI syntax with a high command volume.

Performance Features
Models
Downloads

Performance Features

Input voltage up to 1,200 V
Load current up to 2,700 A
Power from 600 W to 28,800 W
Temporary power overload capacity, depending on model
Models with integrated zero-volt supply (ZV models)
Models with several current setting and measuring ranges (MR models)
High power density up to 2,100 W in 2 U (3,200 W in 3 U)
Basic operating modes CC - CV - CR - CP
Combined operating modes CC+CV, CR+CC+CV, CP+CC+CV, CV+CC
Ethernet + USB + RS-232 + CAN as standard
GPIB optional
Intuitive operation
Quick operation by shortcuts
Setting toggling
Constant current, voltage, resistance and power mode
MPP Tracking
Digital Master-Slave operation
Energy storage test
Ri measurement
Dynamic load with synchronous DAQ
Trigger model
SCPI programming with measurement
USB MSD as measurement data memory
Adjustable protections for overcurrent and undervoltage
Analog monitoring outputs for voltage and current
Analog control input
Digital input and programmable control output
Silent fan cooling
Settings saving
Electronic protection
Bilingual help system (German and English)
2 free calibrations (with device registration)

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
PLI606C10HH2942	PLI606C10	Comparison model description	60	10	600	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI1406-C20HH2472	PLI1406-C20	Comparison model description	60	20	1.200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI2106-C30HH2473	PLI2106-C30	Comparison model description	60	30	1.800	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI606HH2381	PLI606	Comparison model description	60	60	600	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI2106HH2379	PLI2106	Comparison model description	60	180	2.100	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI3206HH2465	PLI3206	Comparison model description	60	300	3.200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI4806HH2519	PLI4806	Comparison model description	60	450	4.800	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI6406HH2520	PLI6406	Comparison model description	60	600	6.400	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI8006HH2562	PLI8006	Comparison model description	60	750	8.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
PLI9606HH2617	PLI9606	Comparison model description	60	900	9.600	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft

Downloads

Datasheets	Type/Format
Datenblatt PLI	PDF	PLI_D_D.pdf
Datenblatt	PDF	PLI_D_E.pdf
