Kewell

A2000-Serie

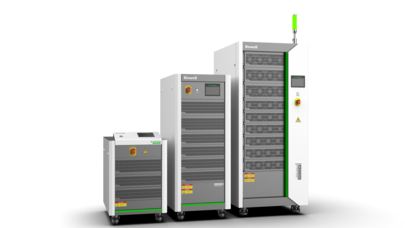

Bidirectional programmable AC power supply

A2000 Series is a bi-directional programmable AC power supply featuring high accuracy, high dynamic response, and high efficiency. The series adopts SiC design of the third-generation wide bandgap semiconductor devices, allowing it to be modularized and standardized, offering industry leading performance and experience. A2000 Series supports waveform editing, harmonic/inter-harmonic injection, RLC load and other functions, with built-in standard curves of different countries to meet the testing requirements of various industries.

Performance Features
Models
Downloads

Performance Features

Pro version (PG)

AC source
AC load
Voltage accuracy ±0.1% F.S.
Frequency range 40 - 70 Hz.
Min. transient time (10%-90% Umax) <800µs
Current accuracy ±0.1% RD+0.2% F.S.
Harmonic range 50 harmonic order@50Hz/60Hz

Ultra version (UG)

AC source
AC load
RLC load
Voltage accuracy ±0.05% F.S.
Frequency range 40 - 100 Hz.
Min. transient time (10%-90% Umax) <500µs
Current accuracy 0.2% F.S.
Harmonic range 70 harmonic order@50Hz/60Hz

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
A2000PG-45K-450-90KE0070	A2000PG-45K-450-90	Comparison model description	450	90	45.000	AC	AC		Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	RS485 / LAN/Ethernet		Luft
A2000PG-225K-450-342KE0081	A2000PG-225K-450-342	Comparison model description	450	342	225.000	AC	AC		Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	RS485 / LAN/Ethernet		Luft
A2000UG-45-450-90KE0032	A2000UG-45-450-90	Comparison model description	450	90	45.000	AC	AC		Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	RS485 / LAN/Ethernet		Luft
A2000UG-225K-450-342KE0079	A2000UG-225K-450-342	Comparison model description	450	342	225.000	AC	AC		Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	RS485 / LAN/Ethernet		Luft

Downloads

Datasheets	Type/Format
Datenblatt A2000-Serie	PDF	A2000_D_E.pdf
