Kewell

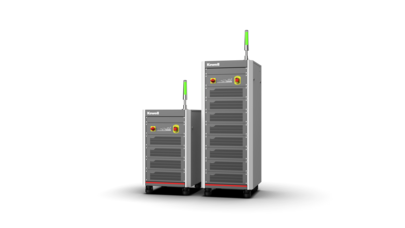

B2000-series

Batterie Test System

The B2000 series is an efficient, high-performance system for charging and discharging tests on battery cells, modules, or packs. The test system features a modular design, high precision, high dynamics, multi-channel parallel connection, and bidirectional power supply. It integrates data acquisition and monitoring into the charging and discharging process. 4, 8, or 16 channels.

Performance Features
Models
Downloads

Performance Features

Ultra-high accuracy
Fast dynamic response
Excellent online data processing
High-performance buffer
System-level testing
All-round protection

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
B2000PG-28K8-6-600-8-EC KE0014	B2000PG-28K8-6-600-8-EC	Comparison model description	6	600	28.800	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	LAN/Ethernet		Luft
B2000PG-12K-6-500-4-EC KE0034	B2000PG-12K-6-500-4-EC	Comparison model description	6	500	12.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	LAN/Ethernet		Luft
B2000PG-8K-6-400-4-EC KE0084	B2000PG-8K-6-400-4-EC	Comparison model description	6	400	8.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
B2000PG-10K-6-500-4-EC KE0085	B2000PG-10K-6-500-4-EC	Comparison model description	6	500	10.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
B2000PG-12K-6-600-4-EC KE0086	B2000PG-12K-6-600-4-EC	Comparison model description	6	600	12.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
B2000PG-6K-6-100-12-EC KE0087	B2000PG-6K-6-100-12-EC	Comparison model description	6	100	6.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
B2000PG-8K-6-200-8-EC KE0088	B2000PG-8K-6-200-8-EC	Comparison model description	6	200	8.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
B2000PG-24K-6-300-16-EC KE0089	B2000PG-24K-6-300-16-EC	Comparison model description	6	300	24.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
B2000PG-12K-6-300-8-EC KE0091	B2000PG-12K-6-300-8-EC	Comparison model description	6	300	12.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
B2000PG-6K-6-300-4-EC ±10V KE0115	B2000PG-6K-6-300-4-EC ±10V	Comparison model description	10	300	6.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-)	CAN / RS485 / LAN/Ethernet		Luft

Downloads

Datasheets	Type/Format
Datenblatt B2000-Serie	PDF	B2000-EC_D_E.pdf
