Kewell

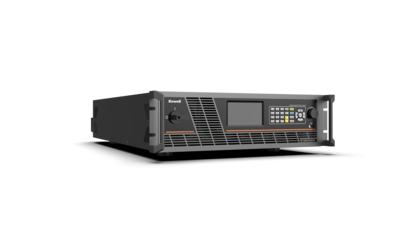

C3000-Serie

Programmable high-power DC power supply

The C3000 Series is a high-precision programmable DC power supply boasting wide voltage range, high dynamic performance, and ultra-high power density. Featuring auto-range output and flexible voltage & current combinations, the C3000 Series is widely used in industries such as PV, EV, and aviation.

Performance Features
Models
Downloads

Performance Features

High power density: 15kW in 3U
Power output range: 0 ~ 15kW
Current output range: 0 ~ 600A
Voltage output range: 0 ~ 100V
Parallel connection: up to 10 units
AC voltage input: 342 VAC ~ 528 VAC
PV simulation: Static MPPT, Multi-IV, EN50530, etc.
Custom waveforms: triangle, square, and sine
Automotive power curve: ISO16750-2, LV123, DIN40839, etc.
RS232/LAN/USB communication interface
Protection functions: OVP, OCP, OTP, OPP, etc.
Remote voltage compensation

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
C3000PG-10K-0100-0400KE0023	C3000PG-10K-0100-0400	Comparison model description	100	400	10.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488		Luft
C3000PG-15K-0100-0600KE0101	C3000PG-15K-0100-0600	Comparison model description	100	600	15.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488		Luft
C3000NG-15K-0100-0600KE0067	C3000NG-15K-0100-0600	Comparison model description	100	600	15.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
C3000NG-10K-0100-0400KE0076	C3000NG-10K-0100-0400	Comparison model description	100	400	10.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488		Luft
C3000PG-7K5-0750-0060KE0068	C3000PG-7K5-0750-0060	Comparison model description	750	60	7.500	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488		Luft
C3000PG-15K-0750-0120KE0080	C3000PG-15K-0750-0120	Comparison model description	750	120	15.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488		Luft
C3000PG-15K-1500-0060KE0007	C3000PG-15K-1500-0060	Comparison model description	1.500	60	15.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488		Luft

Downloads

Datasheets	Type/Format
Datenblatt C3000-Serie	PDF	C3000_D_E.pdf
