Kewell

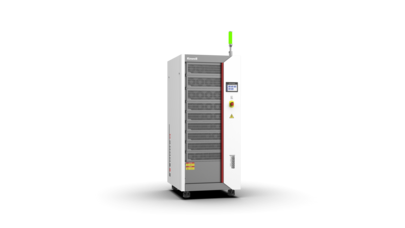

D2000-EV-Serie

Programmable bidirectional DC power supply

Adopting the new modular design, Kewell has launched the second-generation bi-directional programmable high-power DC power supply, D2000-EV series. The D2000-EV series features the third-generation SiC design, boasting high precision, high power density, high dynamic response, and high efficiency. D2000-EV supports DC source mode, regenerative electronic load, and battery simulation function.

Performance Features
Models
Downloads

Performance Features

Third-generation SiC design
Bidirectional DC power supply
Regenerative electronic load
Electrically operated switch + TFT touchscreen
Multi-level programming
Efficiency: up to 95.5%
CV/CC/CR/CP in load mode
7 fixed battery types for battery simulation
1st/2nd/3rd order battery models
IV curve simulation, SAS, Sandia
Dynamic MPPT (EN50530)
Parallel connection up to 2.4 MW
Maximum power density: 176 kW/m3
Communication interface: RS485, LAN, and CAN
Insulation monitoring & safety relay (Performance Level D)
Available in Normal, Pro, and Ultra versions
Input: 3x 380 V AC ±15% / 47–53 Hz
Output voltage: 12–1200 V DC
Output current: 300 A–1200 A
Power: 100 kW–600 kW

Operation: Touch screen
Programming interfaces: LAN, RS485, and CAN
Operating modes: General, Step, Gradient, Fixed Battery Type, and Custom Battery Type
Dimensions [H x W x D]: 2000 x 850 x 1000 mm
Weight: 900 kg

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
D2000PG-600-1200-1200-EVKE9999	D2000PG-600-1200-1200-EV	Comparison model description	1.200	1.200	600.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-300-1200-900-EVKE0028	D2000PG-300-1200-900-EV	Comparison model description	1.200	900	300.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-)	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-200-1200-600-EV_PLDKE0044	D2000PG-200-1200-600-EV_PLD	Comparison model description	1.200	600	200.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-600-1200-1200-EVKE0046	D2000PG-600-1200-1200-EV	Comparison model description	1.200	1.200	600.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-400-1200-1200-EVKE0051	D2000PG-400-1200-1200-EV	Comparison model description	1.200	1.200	400.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-500-1200-1200-EVKE0052	D2000PG-500-1200-1200-EV	Comparison model description	1.200	1.200	400.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-100K-1200-300-EV_PLDKE0056	D2000PG-100K-1200-300-EV_PLD	Comparison model description	1.200	300	100.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-400-1200-1200-EV_PLDKE0058	D2000PG-400-1200-1200-EV_PLD	Comparison model description	1.200	1.200	400.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-600K-1200-1200-EV_PLDKE0059	D2000PG-600K-1200-1200-EV_PLD	Comparison model description	1.200	1.200	600.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft
D2000PG-500-1200-1200-EV_PLDKE0065	D2000PG-500-1200-1200-EV_PLD	Comparison model description	1.200	1.200	500.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft

Downloads

Datasheets	Type/Format
Datenblatt D2000-EV-Serie	PDF	D2000-EV_DC_D_E.pdf
