Kewell

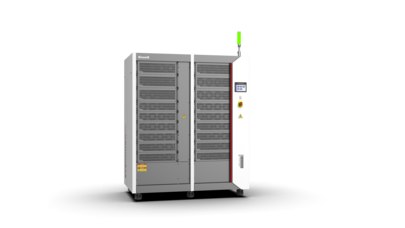

D2000-LG-Serie

Programmable bidirectional DC power supply

The D2000-LG series is an intelligent DC power supply that is characterized by high accuracy, high dynamics, and high efficiency. It is a D2000-IV limited to 1,500 volts in order to comply with the Low Voltage Directive.

Performance Features
Models
Downloads

Performance Features

Third-generation SiC design
Bidirectional DC power supply
Regenerative electronic load
Electrically operated switch + TFT touchscreen
Multi-level programming
Efficiency: up to 95.5%
CV/CC/CR/CP in load mode
First/second/third-order battery models
IV curve simulation, SAS, Sandia
Dynamic MPPT (EN50530)
Parallel connection up to 2.4 MW
Maximum power density: 176 kW/m3
Communication interface: RS485, LAN, and CAN
Insulation monitoring & safety relay (Performance Level D)
Available in Normal, Pro, and Ultra versions
Input: 3x 380 V AC ±15% / 47–53 Hz
Output voltage: 20–1500 V DC
Output current: 300 A–1200 A
Power: 100 kW–600 kW

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
D2000PG-400K-1500-600-LG_PLDKE0064	D2000PG-400K-1500-600-LG_PLD	Comparison model description	1.500	600	400.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / RS485 / LAN/Ethernet		Luft

Downloads

Datasheets	Type/Format
Datenblatt D2000-LG-Serie	PDF	D2000-LG_DC_D_E.pdf
