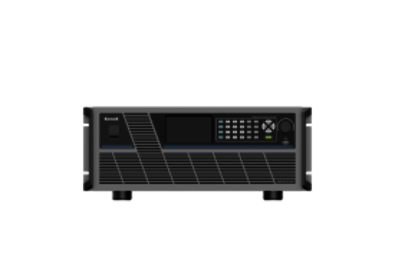

Kewell

E5000-Serie

Programmable DC Electronic Load

The E5000 series is a compact, powerful electronic DC load with a wide operating range and high dynamic frequency. With a size of 4U, it delivers up to 6.6 kW of power and an output voltage of up to 1200 V. It supports up to 10 E5000 devices in parallel operation.

Performance Features
Models
Downloads

Performance Features

High power density: 6.6 kW in 4 U
A variety of modes: CC, CV, CR, CP, CCD, and CRD
Three voltage levels + three current ranges
Automatic GO/NG detection
Remote voltage compensation
Dynamic current/resistance load of 25 kHz
Fuel cell impedance analysis
RS485/CAN/LAN/USB communication
Optional GPIB
Protection functions: OVP, OCP, OTP, OPP, etc.
Dynamic frequency of 50 kHz
Up to 255 groups of programmable sequences
Translated with DeepL.com (free version)

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
E5000PG-6K6-0150-0600 KE0019	E5000PG-6K6-0150-0600	Comparison model description	150	600	6.600	DC	keine	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-) / Rückspeisend	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488 / Andere		Luft
E5000PG-2K2-0150-0200 KE0125	E5000PG-2K2-0150-0200	Comparison model description	150	200	2.200	DC	keine	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-) / Rückspeisend	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488 / Andere		Luft
E5000NG-6K6-0150-0600 KE0148	E5000NG-6K6-0150-0600	Comparison model description	150	600	6.600	DC	keine	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-) / Rückspeisend	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488 / Andere		Luft

Downloads

Datasheets	Type/Format
Datenblatt E5000-Serie	PDF	E5000.pdf
