Kewell

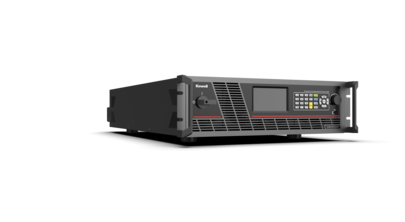

S7000-series

Bidirectional Programmable DC Source-load System

The S7000 Series is a high precision, regenerative DC power source. As a DC source, it supports dual quadrant energy flow, with high conversion efficiency and high power density. In 3U size, it outputs power up to 30kW and voltage up to 2000V. It supports parallel operation of multiple devices. HMI: Colorful touchscreen and knob. S7000 is applicable to testing of battery, battery storage inverter, EV, etc.

Performance Features
Models
Downloads

Performance Features

Automatic switching of source-load function
PV simulation: Static MPPT, Multi-IV, EN50530, etc.
Automotive power curve: ISO16750-2, LV123, DIN40839,
Battery simulation: 6 fixed types, user-defined type
Battery charge and discharge test function
List mode, support for multi-step programming
User-defined waveforms: triangle, square, and sine.
RS232/LAN/USB communication interface
Protection functions: OVP, OCP, OTP, OPP, etc.
Remote voltage compensation

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
S7000UG-5K-0100-0200 KE0020	S7000UG-5K-0100-0200	Comparison model description	100	200	5.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft
S7000UG-10K-0100-0400 KE0072	S7000UG-10K-0100-0400	Comparison model description	100	400	10.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft
S7000UG-15K-0100-0600 KE0075	S7000UG-15K-0100-0600	Comparison model description	100	600	15.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	RS232 / USB / LAN/Ethernet / Analog / Andere		Luft
S7000PG-LV_BR KE9997	S7000PG-LV_BR	Comparison model description	100	600	15.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	RS232 / USB / LAN/Ethernet / Analog / Andere		Luft
S7000PG-10K-0100-0400 KE0029	S7000PG-10K-0100-0400	Comparison model description	100	400	10.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft
S7000PG-5K-0100-0200 KE0073	S7000PG-5K-0100-0200	Comparison model description	100	200	5.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft
S7000PG-15K-0100-0600 KE0098	S7000PG-15K-0100-0600	Comparison model description	100	600	15.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft
S7000NG-10K-0100-0400 KE0107	S7000NG-10K-0100-0400	Comparison model description	100	400	10.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft
S7000UG-30K-0750-0180 KE0021	S7000UG-30K-0750-0180	Comparison model description	750	180	30.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft
S7000PG-15K-0750-0120 KE0099	S7000PG-15K-0750-0120	Comparison model description	750	120	15.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / RS485 / LAN/Ethernet		Luft

Downloads

Datasheets	Type/Format
Datenblatt S7000-Serie	PDF	S7000-DC_D_E.pdf
