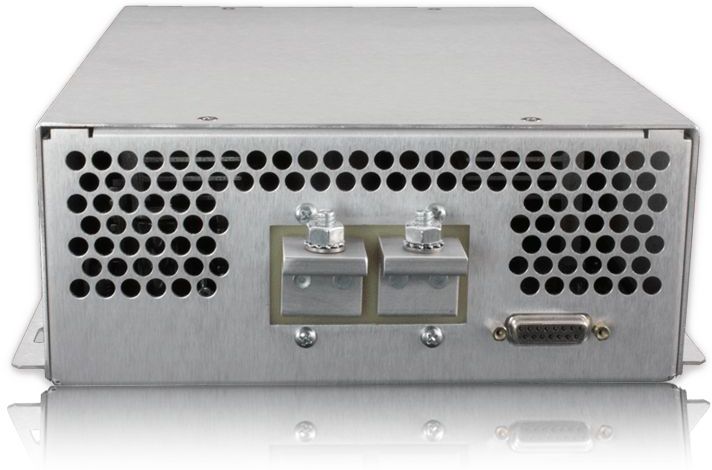

HPP-Serie

• QCW laser diode driver DC/DC, from 30 µs to DC
• Max. output current freely configurable, models up to 1,000 A already implemented
  Ask for further configurations for your requirements
• Power peak up to approx. 100 kW
• Output power up to avg. 6 kW average
• Rise time typically 10-20 µs
• Air-cooled
• Load voltage/DC input: Load-dependent up to approx. 200 V
• For QCW bars and QCW stacks
• Simmer current optionally available
• Compact design for point-of-load operation and low-inductance special supply cables Additional product component for longer load distances if required
• The I/U output configuration is individually adapted to the customer-specific load

Examples:
For 750 A QCW operation with stacked laser bars up to max. 50 V, the model is configured as HPP-6000-750-50-...

For specific medical 2-3 µm diodes with, for example, 120 A/130 V, QCW up to 1 ms operation as HPP-6000-120-130-1ms possible, etc.


• Operation also possible with modules such as JOLD QPXF / CAXF or DILAS M1F / MMF, 3 microns, etc.
• Bar and stack operation, e.g., with II-VI Monsoon, Jenoptik QPNN / QANN / QAFN / QA / QF, Dilas vertical stacks, etc.
