Lumina Power

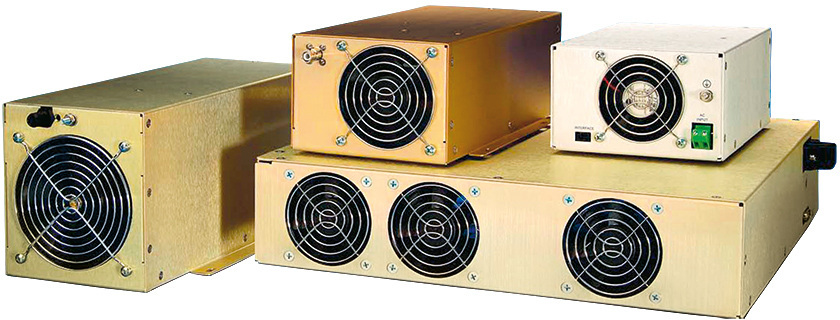

LP Cap.charger

Performance Features

High-voltage capacitor chargers up to 20 kV
OEM models for system integration
Models from 500 J/s up to 6 kJ/s and higher
Higher power ratings > 6 kW available as 3-phase CCHP on request
Voltage repeat accuracy < 0.5 % as standard
Optional high-precision special models with up to < 0.1 % voltage repeat accuracy available
Output current of each model is optimized for the intended application. Maximum charging voltage is adjusted to customer specifications and output current maximized accordingly.
Output power individually optimized for partial or full discharge
Air-cooled
Water-cooled special models with 20 kW and above available on request
Active PFC with power factor > 0.99
Optional protection against reverse voltages available
Medical and industrial approvals
Typical applications: IPL, hair and tattoo removal, UV sterilization, pulsed magnetic coils, solar simulators, photo/film flash lighting

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
CCPF-4000-xxx-yy ReferenzartikelLP9231	CCPF-4000-xxx-yy Referenzartikel	Comparison model description	3.800	0	3.500	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CCPF-6000-xxx-yy ReferenzartikelLP9241	CCPF-6000-xxx-yy Referenzartikel	Comparison model description	3.800	0	6.000	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CCHP-6000-xxx-yy ReferenzartikelLP9251	CCHP-6000-xxx-yy Referenzartikel	Comparison model description	3.800	0	6.000	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CCPF-500-xxx-yy ReferenzartikelLP9201	CCPF-500-xxx-yy Referenzartikel	Comparison model description	4.000	0	500	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CCPF-1500-xxx-yy ReferenzartikelLP9211	CCPF-1500-xxx-yy Referenzartikel	Comparison model description	4.000	0	1.500	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
CCPF-2000-xxx-yy ReferenzartikelLP9221	CCPF-2000-xxx-yy Referenzartikel	Comparison model description	4.000	0	2.000	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
