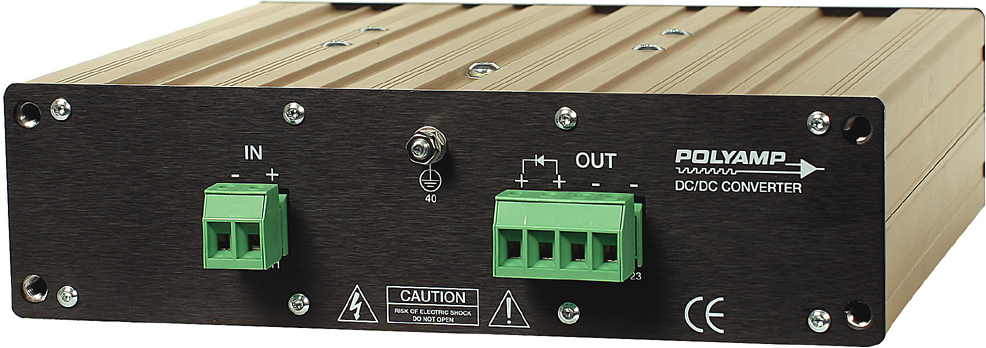

Polyamp

PM-series

DC/DC Converter

Performance Features
Models
Downloads

Performance Features

Individual outputs from 13.2 to 110 VDC
Wide input voltage ranges
Convection cooling at –25 to +55 °C without derating
High efficiency >88%
Galvanic isolation
Robust mechanics for mobile applications
Quick and easy mounting on walls or enclosures
Series diode at the output

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
PM50 Serie PA9900	PM50 Serie	Comparison model description	12	3,34	57	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft
PM80 Serie PA9901	PM80 Serie	Comparison model description	24	3,34	80	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft
PM150 Serie PA9902	PM150 Serie	Comparison model description	48	12,5	150	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft
PM240 Serie PA9903	PM240 Serie	Comparison model description	110	10	240	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft
PM500 Serie PA9904	PM500 Serie	Comparison model description	110	20	500	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft

Downloads

Datasheets	Type/Format
Datenblatt PM50-Serie	PDF	PM50_D_E.pdf
Datenblatt PM80-Serie	PDF	PM80_D_E.pdf
Datenblatt PM150-Serie	PDF	PM150_D_E.pdf
Datenblatt PM240-Serie	PDF	PM240_D_E.pdf
Datenblatt PM500-Serie	PDF	PM500_D_E.pdf
