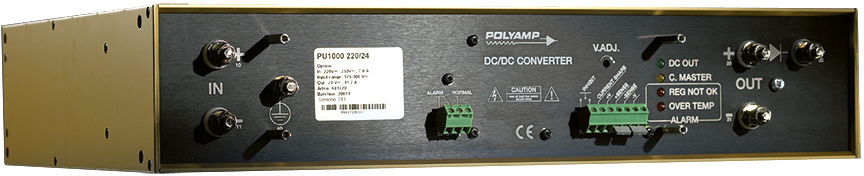

Polyamp

PU-series

DC/DC Converter

Performance Features
Models
Downloads

Performance Features

Individual outputs from 12 to 60 VDC
Wide input voltage ranges
Convection cooling at –25 to +55 °C without derating
High efficiency 77 to 91 %
Galvanic isolation
Robust mechanics for mobile applications
Quick and easy mounting on walls or enclosures
Series diode at the output
Sense connections

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
PU600 Serie PA9907	PU600 Serie	Comparison model description	48	40	600	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft
PU300 Serie PA9905	PU300 Serie	Comparison model description	60	25	300	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft
PU500 Serie PA9906	PU500 Serie	Comparison model description	60	20,9	500	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft
PU1000 Serie PA9908	PU1000 Serie	Comparison model description	110	41,7	1.000	DC	DC	CV	Quelle u/o Senke	Q1 (U+,I+)			Luft

Downloads

Datasheets	Type/Format
Datenblatt PU300-Serie	PDF	PU300_D_E.pdf
Datenblatt PU1000-Serie	PDF	PU1000_D_E.pdf
Datenblatt PU500-Serie	PDF	PU500_D_E.pdf
Datenblatt PU600-Serie	PDF	PU600_D_E.pdf
