Preen

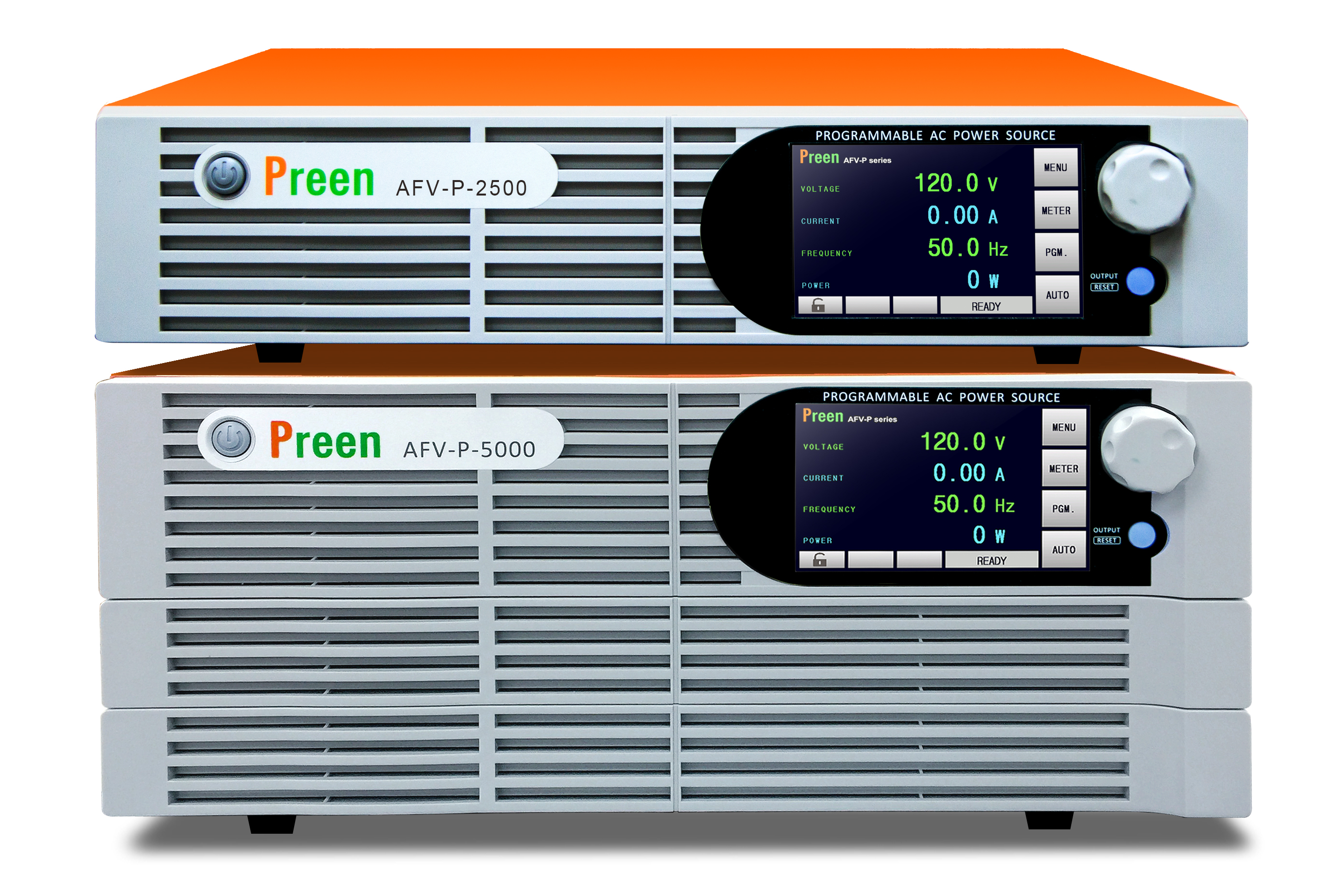

AFV-P-Serie

Single-phase AC source 600 – 5,000 VA

Preen's AFV-P series not only simulates standard voltages and frequencies, but can also simulate sags, surges, outages, and spikes in the mains supply, covering a variety of power supply conditions and verifications. The AFV-P series features a DC output and excellent output power and is used in the motor, household appliance, military, aircraft, and power module industries. Suitable for the defense and military industries.

Performance Features
Options
Models
Downloads

Performance Features

Power output 600-5,000 VA
Simulation of single-phase networks
AC/DC operation
Output voltage 0-310 VAC/0-420 VDC
Variable frequency from 5-2,000 Hz, sine wave
Graphical display
Measurements of voltage, effective current, average value, peak current, active power, reactive power, apparent power, power factor, crest factor
Software for controlling the AC source included

Options

GPIB interface
Analog interface
Voltage extension to 0-1,240 V
Power extension to 150% for 1 second

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
AFV-P-600B V2PR0026	AFV-P-600B V2	Comparison model description	310	5	600	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft
AFV-P-1250A V2PR0027	AFV-P-1250A V2	Comparison model description	310	10	1.250	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft
AFV-P-1250B V2PR0028	AFV-P-1250B V2	Comparison model description	310	10	1.250	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft
AFV-P-2500A V2PR0029	AFV-P-2500A V2	Comparison model description	310	20	2.500	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft
AFV-P-600A V2PR0025	AFV-P-600A V2	Comparison model description	310	5	600	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft
AFV-P-2500B V2PR0030	AFV-P-2500B V2	Comparison model description	310	20	2.500	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft
AFV-P-5000A V2PR0031	AFV-P-5000A V2	Comparison model description	310	40	5.000	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft
AFV-P-5000B V2PR0032	AFV-P-5000B V2	Comparison model description	310	40	5.000	AC	ACDC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / RS485 / LAN/Ethernet	CW	Luft

Downloads

Datasheets	Type/Format
Datenblatt	PDF	AFV-P-series_D_E.pdf
