Regatron

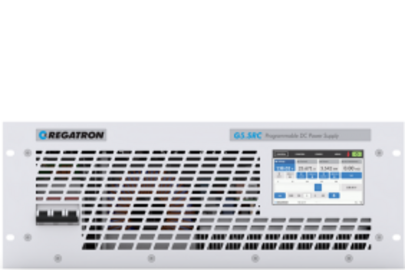

G5.SRC-Serie

Programmable DC power supply

The G5.SRC series are unidirectional sources that can operate in CV, CC, or CP control modes with simulation of internal resistance in CV or internal conductance in CC mode. It is universally applicable and therefore suitable for all industrial and scientific applications in laboratories as well as on test benches and production lines. The modular and finely graded G5.SRC series is characterized by highly dynamic response times, adjustable filter time constants, and a wide current-voltage range with an auto-ranging factor 3. Optional software, programming, and communication interfaces as well as extended safety functions allow the G5.SRC power supplies to be optimally adapted to special customer application requirements.

Performance Features
Models
Downloads

Performance Features

Technologically advanced, fast switching, compact 19-inch power supplies
High control dynamics in the 100…200 μs range – even at higher power levels up to 5000+ kW
Exceptional accuracy with additional high-resolution current measurement range
Wide current-voltage range with an autoranging factor 3
CV, CC, CP, and Ri/Gi-Sim control modes
Highly efficient, resulting in a significant
reduction of energy consumption and heat dissipation

Modular and easily scalable systems
Parallel, series, and mixed operation with a digital high-speed bus
Simple multi-unit configuration with the operating software
Easy rack mounting
Liquid cooled systems in IP54 available
Optional safety features such as 2-channel safety interface and insulation monitoring
Turn-key cabinet solutions or project-specific system integration according to customer specification

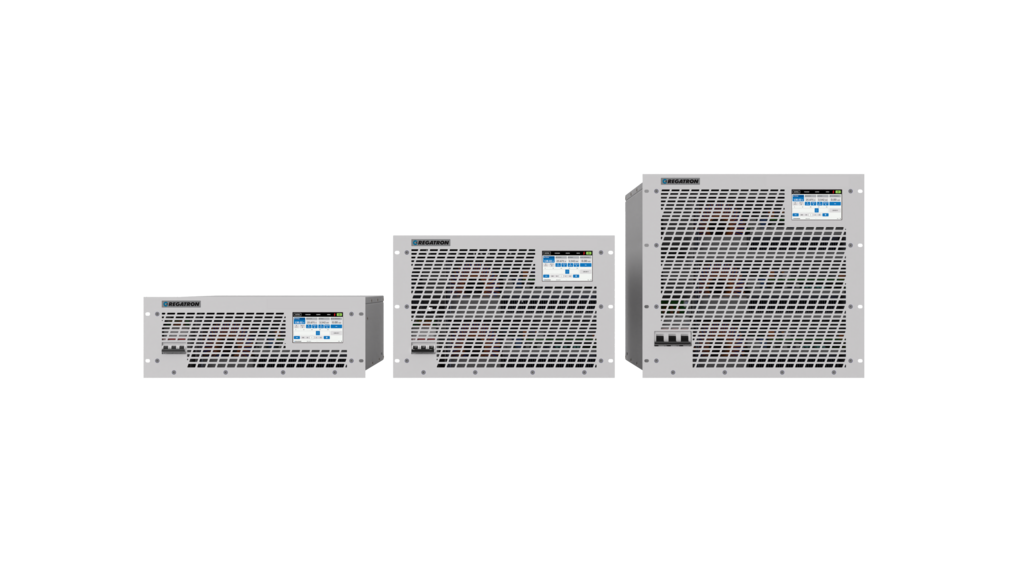

Gallery

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
G5.SRC.54.60.2028RE6163	G5.SRC.54.60.2028	Comparison model description	60	2.028	54.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.9.60.338RE6189	G5.SRC.9.60.338	Comparison model description	60	338	9.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.18.60.676RE6190	G5.SRC.18.60.676	Comparison model description	60	676	18.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.27.60.1014RE6191	G5.SRC.27.60.1014	Comparison model description	60	1.014	27.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.45.60.1690RE6192	G5.SRC.45.60.1690	Comparison model description	60	1.690	45.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.9.80.338RE6181	G5.SRC.9.80.338	Comparison model description	80	338	9.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.18.80.676RE6182	G5.SRC.18.80.676	Comparison model description	80	676	18.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.36.80.1352RE6215	G5.SRC.36.80.1352	Comparison model description	80	1.352	36.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.54.80.2028RE6216	G5.SRC.54.80.2028	Comparison model description	80	2.028	54.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft
G5.SRC.27.80.1014RE6251	G5.SRC.27.80.1014	Comparison model description	80	1.014	27.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet / Analog		Luft

Downloads

Datasheets	Type/Format
Produktinfo G5.SRC	PDF	PD_G5.SRC_E.pdf
