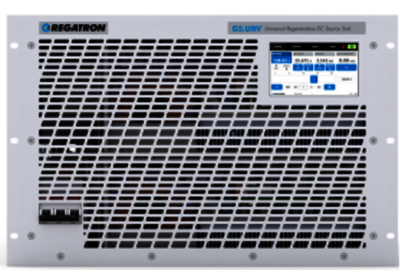

G5.UNV-series

The G5.UNV series offers highly dynamic response times, adjustable filter time constants, and a wide current-voltage range with auto-ranging factor.
Modular in design, it supports CV, CC, CP, CR, and Ri-Sim control modes. With special software modules, it enables the simulation of energy storage systems,
solar power systems, and the testing of batteries and fuel cells—a flexible solution for a wide range of applications.


Technology

• Fast-switching, compact 19-inch power supplies
• High control dynamics in the range of 100...200 μs – even at higher power levels
• Exceptional accuracy of <0.02% FS, plus high-resolution measuring range
• Large current-voltage range with an auto-ranging factor of 3
• CV, CC, CP, CR, and Ri-Sim control modes
• Regenerative and highly efficient

System capability

• Modular and easily scalable systems
• Parallel, series, and mixed operation with high-speed digital bus
• Simple master-slave configuration via the operating software
• Easy rack mounting
• Optional safety functions such as 2-channel safety interface and isolation monitoring
• Turnkey control cabinet solutions or project-specific system integration according to customer specifications


System control and options

• Operating software, advanced analysis, parameterization options, and calibration
• Application software with visualization, programming, and data logger

• Powerful application programming interfaces (APIs)
