Höcherl&Hackl

PLA-Serie

Air-cooled direct current load 200 – 1,200 W

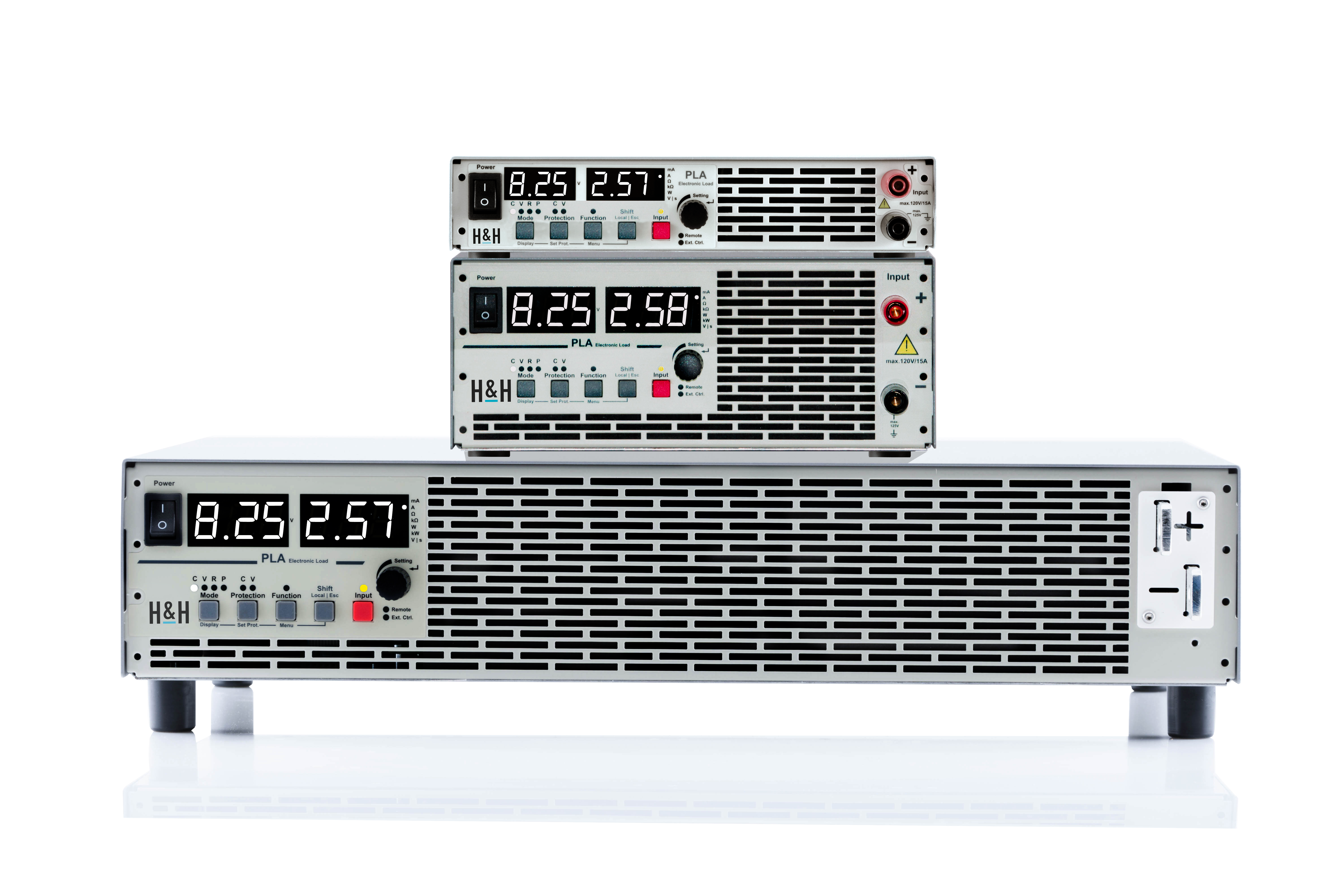

PLA series electronic loads combine classic design, large display with modern interfaces and great functionality. The highlight of the PLI series is the extensive variety of optional interfaces. In addition to Ethernet, USB, RS-232 can be installed and also a CAN interface. In addition, for devices with 400 W GPIB is optionally available. I/O port ist standard. Programming is done in SCPI syntax.

Performance Features
Models
Downloads

Performance Features

Input voltage up to 800 V
Load current up to 120 A
Power up to 1500 W
I/O Port as standard
Optional Ethernet + USB + RS-232
Optional CAN Interface
Optional GPIB Interface (PLA4xx and greater)
CC - CV - CR - CP mode
Protections for current and voltage
Maximum Power Point Tracking (MPPT)
V/I Characteristic function
Digital Master-Slave operation
Watchdog at remote control
SCPI programming with DAQ function
Dynamic loads
Depending on model, temporary overload capacity up to 1.5-fold power
Electronic protection
Silent fan cooling
19 inch installation possible
Load inputs at front and rear side
2 free calibrations after registration

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
PLA206__60 V / 30 A / 200 WHH2532	PLA206__60 V / 30 A / 200 W	Comparison model description	60	30	200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA206C4 __ 60 V / 4 A / 200 WHH2533	PLA206C4 __ 60 V / 4 A / 200 W	Comparison model description	60	4	200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA406 __ 60 V / 30 A / 400 WHH2534	PLA406 __ 60 V / 30 A / 400 W	Comparison model description	60	30	400	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA406C8 __ 60 V / 8 A / 400 WHH2535	PLA406C8 __ 60 V / 8 A / 400 W	Comparison model description	60	8	400	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA506 __ 60 V / 30 A / 500 WHH2841	PLA506 __ 60 V / 30 A / 500 W	Comparison model description	60	30	500	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA806__60 V / 80 A / 800 WHH2646	PLA806__60 V / 80 A / 800 W	Comparison model description	60	80	800	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA806C16__60 V / 16 A / 800 WHH2647	PLA806C16__60 V / 16 A / 800 W	Comparison model description	60	16	800	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA1006 __ 60 V / 80 A / 1000 WHH2847	PLA1006 __ 60 V / 80 A / 1000 W	Comparison model description	60	80	1.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA1206 __ 60 V / 120 A / 1200 WHH2652	PLA1206 __ 60 V / 120 A / 1200 W	Comparison model description	60	120	1.200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
PLA1206C24 __ 60 V / 24 A / 1200 WHH2653	PLA1206C24 __ 60 V / 24 A / 1200 W	Comparison model description	60	24	1.200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q4 (U+,I-)	Analog		Luft
