Höcherl&Hackl

QL-Serie

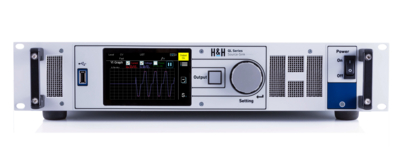

Air-cooled source-sink 100 – 3,600 W

QL series devices are sources and sinks or power supply and electronic load in one device. They are used for testing a wide variety of energy storage devices, as well as other DUTs such as motors, chargers or coils.

Performance Features
Models
Downloads

Performance Features

Voltage up to 100 V
Currents up to 320 A
2-quadrant or 4-quadrant design
DC source-sink
Additional AC source for 4-quadrant models
User interface with 4.3" touch screen
Basic operating modes CC, CV, CP, CR
Combined operating modes CC+CV, CV+CC
Adjustable upper and lower limits for V and I
Adjustable internal resistance in CC and CV modes
Capacitance simulation
Internal resistance measurement
Digital master-slave operation for parallel connection
List function with synchronous data acquisition
Rectangular, PWM and modulation function
Trigger model
SCPI programming with measurement functions
RS-232, USB, LAN, CAN, I/O port standard
GPIB optional
Isolated I/O port optional
Analog monitoring outputs for voltage and current
Analog control inputs for control V/I and limit V/I
Save settings
Electronic protection
Bilingual help system (DE, EN)
2 free calibrations (with registration)

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
QL1V8C240 __ Unipolar HH3102	QL1V8C240 __ Unipolar	Comparison model description	8	240	1.920	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
QL-Serie Unipolar Bereichsartikel HH5000	QL-Serie Unipolar Bereichsartikel	Comparison model description	8	100	3.600	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488	CW / High Speed	Luft
QL8V8C46__Bipolar HH3084	QL8V8C46__Bipolar	Comparison model description	8	46	368	AC	ACDC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
QL-Serie Bipolar HH5001	QL-Serie Bipolar	Comparison model description	8	50	1.920	AC	ACDC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog / GPIB/IEEE-488	CW / High Speed	Luft
QL1V10C20 __Unipolar HH3054	QL1V10C20 __Unipolar	Comparison model description	10	20	200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
QL10V10C10__Bipolar HH3035	QL10V10C10__Bipolar	Comparison model description	10	10	100	AC	ACDC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
QL10V10C38__Bipolar HH3053	QL10V10C38__Bipolar	Comparison model description	10	38	380	AC	ACDC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q2 (U-,I+) / Q3 (U-,I-) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
QL1V20C10 __Unipolar HH3082	QL1V20C10 __Unipolar	Comparison model description	20	10	200	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
QL1V20C40 __Unipolar HH3055	QL1V20C40 __Unipolar	Comparison model description	20	40	800	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft
QL1V20C120 __Unipolar HH3052	QL1V20C120 __Unipolar	Comparison model description	20	120	2.400	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-)	CAN / RS232 / USB / LAN/Ethernet / Analog		Luft

Downloads

Datasheets	Type/Format
Datenblatt QL-Serie Deutsch	PDF	QL_D_D.pdf
Datasheet QL-Serie English	PDF	QL_D_E.pdf
