ITECH

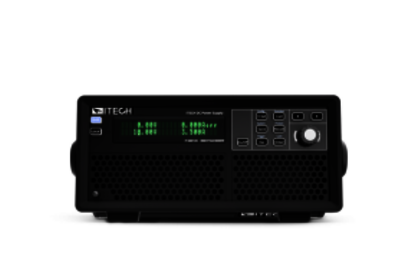

IT-M3140-series

Programmable DC Power Supply

The IT‑M3140 is specifically designed for testing, production, R&D laboratories, and ATE integration. Despite its compact 2U half‑rack size, it delivers an impressive 1850 W to 3000 W of power and a voltage range from 30 V to 1200 V. With three operating modes – constant voltage, constant current, and constant power – as well as an automatic wide‑range output, it covers an exceptionally broad spectrum of test requirements while significantly reducing equipment investment costs. Featuring high stability, an ultra‑fast response time of less than 1 ms, comprehensive protection functions, and LIST programming, the IT‑M3140 offers maximum control and precision. Standard USB and LAN interfaces, combined with ITECH’s free PV3140 software, enable easy integration, convenient remote control, and reliable data logging. Whether in semiconductor ATE, burn‑in systems, testing and certification environments, power module evaluation, or automotive electronics – the IT‑M3140 is the ideal solution for demanding applications.

Performance Features
Models
Downloads

Performance Features

Only 2U half rack, 1850W/3000W
30V-1200V, 150A
Three output modes: CV/CC/CP
CC/CV priority to avoid current overshoot
Fast dynamic response: <1ms
According to the voltage and current waveform output programmed by LIST,the rising and falling slopes are adjustable
Fold back,UVP/OVP, UCP/OCP,OPP,OTP, inhibit protection,more secure and reliable
The Sense protection circuit combined with software and hardware can effectively detect Sense reverse connection and missing connection, and protect the DUT
Standard USB/LAN, optional RS232 & analog, GPIB, easy to integrate

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
IT-M3144 - 300 V / 20 A / 3000 W IT0107	IT-M3144 - 300 V / 20 A / 3000 W	Comparison model description	300	20	3.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet		Luft
IT-M3146 - 1000 V / 6 A / 3000 W IT0289	IT-M3146 - 1000 V / 6 A / 3000 W	Comparison model description	1.000	6	3.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet		Luft
IT-M3147 - 1200 V / 5 A / 3000 W IT0063	IT-M3147 - 1200 V / 5 A / 3000 W	Comparison model description	1.200	5	3.000	AC	DC	CC/CV	Quelle u/o Senke	Q1 (U+,I+)	USB / LAN/Ethernet		Luft

Downloads

Datasheets	Type/Format
Datenblatt IT-M3140-Serie	PDF	IT-M3140_D_E.pdf
