ITECH

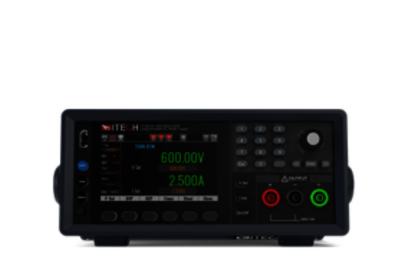

IT-N6700-series

Wide-Range Programmable DC Power Supply

The IT-N6700 Series Programmable DC Power Supply is designed to meet high power density and performance requirements, widely used in automated test equipment, R&D laboratories, semiconductor testing, and power electronics. The series offers 1000W and 1500W power options, with a voltage range from 32V to 1500V, catering to various testing needs. Its compact 1/2 2U rack design delivers powerful output in limited space. Equipped with a high-definition LCD screen, it provides not only traditional numeric measurements but also waveform trend display, allowing real-time monitoring of parameter changes during the testing process.

Performance Features
Models
Downloads

Performance Features

4.3-inch LCD screen
Three output modes: CC/CV/CP
Wide range : 32V-1500V, 1000W & 1500W
LIST mode, adjustable rise/fall slope
CC/CV priority mode for compatibility with various DUTs
Trend analysis function for monitoring long-duration U/I/P curves
Remote sensing compensation
Rich protections: OCP/OVP/UVP/OPP/OTP/Foldback
Standard USB/LAN/RS232/Digital I/O communication interfaces

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
IT-N6723C - 32 V / 110 A / 1000 W IT0461	IT-N6723C - 32 V / 110 A / 1000 W	Comparison model description	32	110	1.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6724C - 32 V / 110 A / 1500 W IT0467	IT-N6724C - 32 V / 110 A / 1500 W	Comparison model description	32	110	1.500	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6723 - 80 V / 40 A / 1000 W IT0462	IT-N6723 - 80 V / 40 A / 1000 W	Comparison model description	80	40	1.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6724 - 80 V / 40 A / 1500 W IT0468	IT-N6724 - 80 V / 40 A / 1500 W	Comparison model description	80	40	1.500	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6724B - 150 V / 20 A / 1500 W IT0459	IT-N6724B - 150 V / 20 A / 1500 W	Comparison model description	150	20	1.500	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6723B - 150 V / 20 A / 1000 W IT0463	IT-N6723B - 150 V / 20 A / 1000 W	Comparison model description	150	20	1.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6723H - 300 V / 10 A / 1000 W IT0464	IT-N6723H - 300 V / 10 A / 1000 W	Comparison model description	300	10	1.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6724H - 300 V / 10 A / 1500 W IT0469	IT-N6724H - 300 V / 10 A / 1500 W	Comparison model description	300	10	1.500	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6723G - 600 V / 5 A / 1000 W IT0465	IT-N6723G - 600 V / 5 A / 1000 W	Comparison model description	600	5	1.000	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft
IT-N6724G - 600 V / 5 A / 1500 W IT0470	IT-N6724G - 600 V / 5 A / 1500 W	Comparison model description	600	5	1.500	AC	DC	CC/CV/CP	Quelle u/o Senke	Q1 (U+,I+)	RS232 / USB / LAN/Ethernet / Andere		Luft

Downloads

Datasheets	Type/Format
Datenblatt IT-N6700-Serie	PDF	IT-N6700_D_E.pdf
