Lumina Power

LDN-Serie

CW & pulsed laser diode driver, max. 100 A / 200 V, 600 – 2,000 W

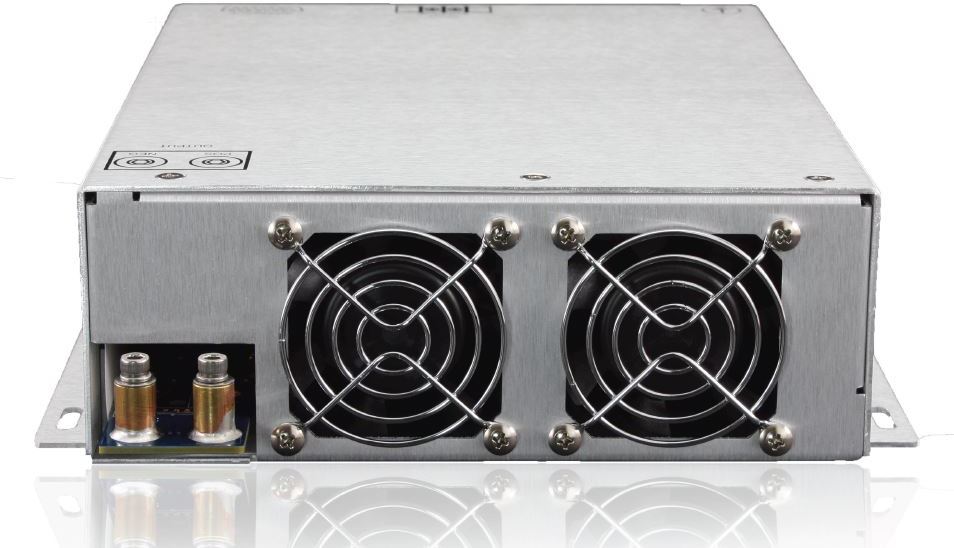

The LDN series laser diode drivers are the second generation of precision CW/Pulsed diode drivers offered by Lumina Power. Building on more than a decade of experience in laser diode driver technology the new LDN family incorporates the features of the LDD and LDY models. New upgrades include increased energy storage for better pulsed performance, newly designed magnetics for cooler operation, lower inrush current at start-up and availability of an optional Performance Level “E” laser safety feature. Offered in 4 power levels from 600 to 2000 watts the LDN family of laser diode drivers offer laser designers the most advanced and proven power supply technology available.

Performance Features
Models
Downloads

Performance Features

600 to 2000 Watts Output
Output Currents to 100amps
Compliance Voltages to 200V
Performance Level E Safety
Power Factor Correction
Universal Input Voltage
Auxiliary +15/-15, +5V
Low Conducted Emissions
RoHS Compliant

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
LDN-600-xx-yy-MO-PL ReferenzLP9001	LDN-600-xx-yy-MO-PL Referenz	Comparison model description	200	100	600	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
LDN-600-xx-yy-MO-PL-FR ReferenzLP9002	LDN-600-xx-yy-MO-PL-FR Referenz	Comparison model description	200	100	600	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed	Luft
LDN-1000-xx-yy-MO-PL-FR ReferenzLP9012	LDN-1000-xx-yy-MO-PL-FR Referenz	Comparison model description	200	100	1.000	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed	Luft
LDN-1000-xx-yy-MO-PL ReferenzLP9011	LDN-1000-xx-yy-MO-PL Referenz	Comparison model description	200	100	1.000	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
LDN-1500-xx-yy-MO-PL ReferenzLP9021	LDN-1500-xx-yy-MO-PL Referenz	Comparison model description	200	100	1.500	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
LDN-1500-xx-yy-MO-PL-FR ReferenzLP9022	LDN-1500-xx-yy-MO-PL-FR Referenz	Comparison model description	200	100	1.500	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed	Luft
LDN-2000-xx-yy-MO-PL ReferenzLP9031	LDN-2000-xx-yy-MO-PL Referenz	Comparison model description	200	100	2.000	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW	Luft
LDN-2000-xx-yy-MO-PL-FR ReferenzLP9032	LDN-2000-xx-yy-MO-PL-FR Referenz	Comparison model description	200	100	1.500	AC	DC	CC	Quelle u/o Senke	Q1 (U+,I+)	Analog	CW / High Speed	Luft
