Regatron

G5.DT-series

Bidirectional DC power supply / Drivetrain-Tester

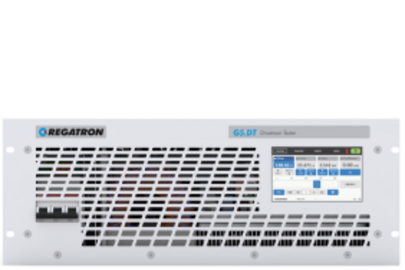

The G5.DT series is bidirectional regenerative. It was developed specifically for testing DC components of the electrical drive train or of other parts of the vehicle’s electrical system. It is suitable for use in laboratories and on test benches. The modular and finely graded G5.DT series is characterized by highly dynamic response times, adjustable filter time constants, and a wide current-voltage range with an auto-ranging factor 3. The power supplies are equipped with a powerful CAN multi-protocol interface (1 kHz, 16 bit) and optionally offer test bench relevant safety functions such as PL e according to EN ISO 13849, insulation monitoring as well as automatic discharge on the load side in case of a shutdown.

Performance Features
Models
Downloads

Performance Features

Technologically advanced, fast switching, compact 19-inch power supplies
High control dynamics in the 100…200 μs range – even at higher power levels up to 5000+ kW
Exceptional accuracy with additional high-resolution current measurement range
Wide current-voltage range with an autoranging factor 3
CV, CC, CP, CR, and Ri/Gi-Sim control modes
Regenerative and highly efficient, resulting in a significant reduction of energy consumption and heat dissipation

Modular and easily scalable systems
Parallel, series, and mixed operation with a digital high-speed bus
Simple multi-unit configuration with the operating software
Easy rack mounting
Liquid cooled systems in IP54 available
Optional safety features such as 2-channel safety interface and insulation monitoring
Optional DC discharge unit for safe shutdown of the test bench
Turn-key cabinet solutions or project-specific system integration according to customer specification

Gallery

Models

To product comparison

Model	Watchlist	Comparison	Voltage	Current	Power	Input	Output	Control mode	Function	Quadrants	Standard interface	Operating modes	Cooling
G5.DT.45.60.1690.M RE6295	G5.DT.45.60.1690.M	Comparison model description	60	1.690	45.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.18.80.676.M RE6229	G5.DT.18.80.676.M	Comparison model description	80	676	18.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.9.80.338.M RE6230	G5.DT.9.80.338.M	Comparison model description	80	338	9.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.27.80.1014.M RE6231	G5.DT.27.80.1014.M	Comparison model description	80	1.014	27.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.36.80.1352.M RE6232	G5.DT.36.80.1352.M	Comparison model description	80	1.352	36.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.45.80.1690.M RE6233	G5.DT.45.80.1690.M	Comparison model description	80	1.690	45.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.54.80.2028.M RE6234	G5.DT.54.80.2028.M	Comparison model description	80	2.028	54.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.18.160.338.M RE6241	G5.DT.18.160.338.M	Comparison model description	160	338	18.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.36.320.338.M RE6418	G5.DT.36.320.338.M	Comparison model description	320	338	36.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
G5.DT.18.500.108.M RE6113	G5.DT.18.500.108.M	Comparison model description	500	108	54.000	AC	DC	CC/CV/CP/CR	Quelle u/o Senke	Q1 (U+,I+) / Q4 (U+,I-) / Rückspeisend	CAN / USB / LAN/Ethernet / Analog		Luft
