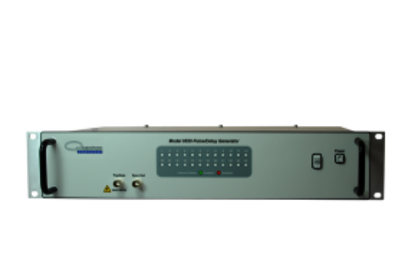

9550 series

Pulse-Delay Generator 6, 12, 24 or 36 channels 250 ps, 20 MHz

9550 models are designed especially for complex applications with multiple events to be triggered at up to 36 independent pulse widths and delays from up to 36 output channels. High timing resolution of 250 ps for pulse widths and delays as well as a low chn-to-chn jitter of <50 ps provide reliable high precision timing operations. Burst, duty-cycle mode as well as channel multiplexing allows the generation of complex pulse patterns.
