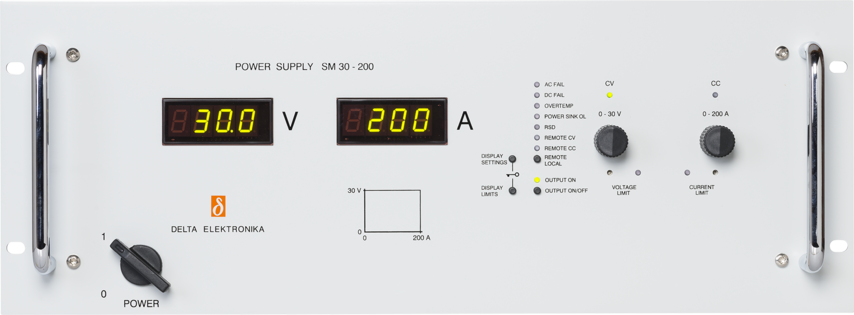

Delta Elektronika

SM6000-Serie

6 kW DC power supply

The SM6000 series consists of power supplies with excellent service life and stability. Multiple power supplies can be connected in series, parallel, or both series and parallel.

Performance Features
Models
Downloads

Performance Features

Designed for long life at full power
Excellent dynamic response to load changes
Protected against all overload and short circuit conditions
EMC surpasses CE requirements: low emission and high immunity
Low audible noise: fans are temperature controlled
19” rack-mountable design with lab-use feet included
Master / Slave parallel and series operation with voltage and current sharing
Stacking is allowed, space between units is not required
High power system configuration from multiple units
Remote sensing
Interlock

Input voltage (3 phase, rated voltage range): 342 - 528 V_AC, V_nomline to line (48-62 Hz)
Active Power Factor Correction (PFC): 0.98 (at 100% load)
Efficiency: up to 90% (at full load)
Output ripple and spikes: from 0.8 mV_RMS/ 10 mV_PP
Regulation: from 2.5 mV (0-100% load step)
Recovery time: from 100 μs (50-100% load step)
Programming speed: from 2.7 ms (10-90%), optional from 0.4 ms
Analog programming accuracy: from 0.2%
Output voltage and current stability: 5.10-5 / 10.10-5
MTBF: 500 000 hrs
Operating ambient temperature: -20 to +50 °C
Width: 19 inch
Height: 4 U
Depth: 542 mm
Weight: 27 kg

Models

To product comparison

Model

Watchlist

Comparison

Voltage

Current

Power

Input

Output

Control mode

Function

Quadrants

Standard interface

Operating modes

Cooling

SM15-400 DE0622

400

6.000

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

Options

Article number	Description	Watchlist	Comparison
40992	P166 - High Speed SM15-400	P166 - High Speed SM15-400	P166 - High Speed SM15-400
41010	P230 - Power Sink SM15-400	P230 - Power Sink SM15-400	P230 - Power Sink SM15-400

SM30-200 DE0701

200

6.000

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

Options

Article number	Description	Watchlist	Comparison
40993	P167 - High Speed SM30-200	P167 - High Speed SM30-200	P167 - High Speed SM30-200
41011	P231 - Power Sink SM30-200	P231 - Power Sink SM30-200	P231 - Power Sink SM30-200

SM45-140 DE0702

140

6.300

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

Options

Article number	Description	Watchlist	Comparison
40994	P168 - High Speed SM45-140	P168 - High Speed SM45-140	P168 - High Speed SM45-140
41012	P232 - Power Sink SM45-140	P232 - Power Sink SM45-140	P232 - Power Sink SM45-140

SM60-100 DE0703

100

6.000

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

Options

Article number	Description	Watchlist	Comparison
40995	P169 - High Speed SM60-100	P169 - High Speed SM60-100	P169 - High Speed SM60-100
41013	P233 - Power Sink SM60-100	P233 - Power Sink SM60-100	P233 - Power Sink SM60-100

SM70-90 DE0704

6.300

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

Options

Article number	Description	Watchlist	Comparison
40996	P170 - High Speed SM70-90	P170 - High Speed SM70-90	P170 - High Speed SM70-90
41014	P234 - Power Sink SM70-90	P234 - Power Sink SM70-90	P234 - Power Sink SM70-90

SM120-50 DE0705

120

6.000

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

Options

Article number	Description	Watchlist	Comparison
40997	P171 - High Speed SM120-50	P171 - High Speed SM120-50	P171 - High Speed SM120-50

SM300-20 (0 - 5 V) DE2312

300

6.000

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

SM600-10 (0 - 5 V) DE2006

600

6.000

CC/CV

Quelle u/o Senke

Q1 (U+,I+)

Analog

Luft

Options

Article number	Description	Watchlist	Comparison
40999	P270 - High Speed SM600-10	P270 - High Speed SM600-10	P270 - High Speed SM600-10

Downloads

Datasheets	Type/Format
Datenblatt SM6000	PDF	SM6000_D_E.pdf
Datenblatt Zubehör PSC-ETH 2	PDF	PSC-ETH-2_D_E.pdf
Datenblatt Zubehör Delta RS232	PDF	PSC232-488_D_E_2024_06_28.pdf
Datenblatt Zubehör ISO AMP CARD/Modul (0-5V/0-10V)	PDF	ISO-AMP_D_E.pdf
Datenblatt Zubehör PSC232_intern	PDF	PSC232_D_E.pdf
Datenblatt Zubehör Highspeed Delta Elektronika	PDF	HighSpeed_D_E.pdf
Datenblatt Zubehör SM6000 Powersink	PDF	SM6000-PowerSink_D_E.pdf
