Regatron

TC.P-Serie

High-power power supply

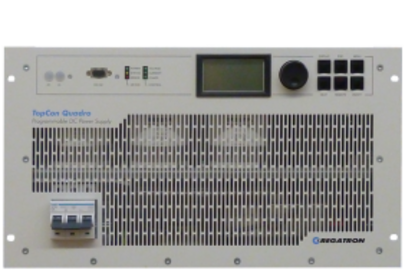

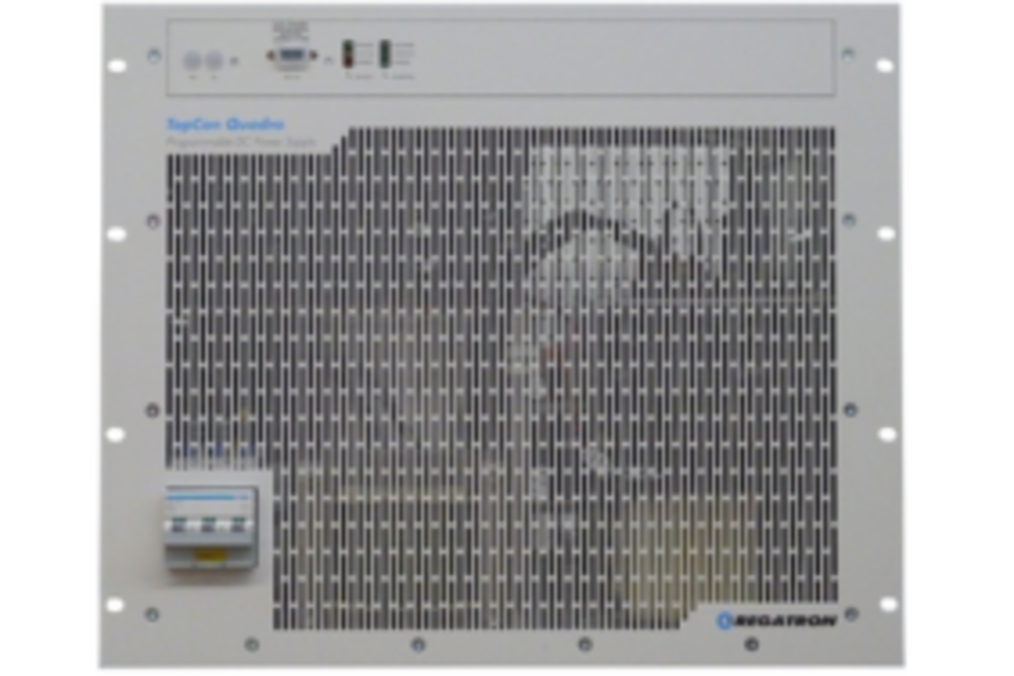

The proven and cost-effective TC.P TopCon Quadro series is designed for a wide range of applications including unidirectional inverter testing, battery charging, EoL testing, and fuel cell simulation. The established DC power supply provides fast and stable operation. Full digital control of TC.P series allowing for onboard real-time compution for time critical applications such as simulation of of a I-V curve for photovoltaik (PV) simulation. The powerful SASControl application software for convenient operation in accordance with EN 50530 and the optional TC.LIN linear post-processor for maximum control dynamics and accuracy complete the PV simulation offering. The TC.P series offers application software for laboratory use and a variety of programming interfaces for integration into automated test benches.. The prevailing environmental conditions in the application were given great importance in the design of the TC.P series. The devices are available air or liquid cooled. Additional options are available for protection against shock, vibration, dust and humidity. Various safety options in the device or integrated in the control cabinet complete the capabilities of this all-rounder.

Performance Features

  • CV, CC, CP, and Ri-Sim control modes
  • Full digital control and onboard real-time compution for time critical applications such as internal resistance simulation, time function engine TFE and or the universal application area programming AAP for a programmable transfer characteristic or a random two-pole function y = f(x)
  • Optionally expandable with a linearly controlled power stage for precise and fast regulation of the MPP of photovoltaic curves
  • Durable high-quality design with optional ruggedized version against shock&vibration and/or humidity&pollution
  • Parallel, series and mixed mode configuration
  • Scalable from 16 kW to 512+ kW or higher at voltage levels from 0…52 to 0…2000 VDC
  • Turn-key cabinet solutions mobile or stationary, liquid or air cooled
  • Safety features such as 2-channel safety interface and insulation monitoring
  • Third party product integration, AC/DC connectors, and cables for convenient handling
